Holographic Parallax Shader

Simple stacked-parallax shader fitted for holograms

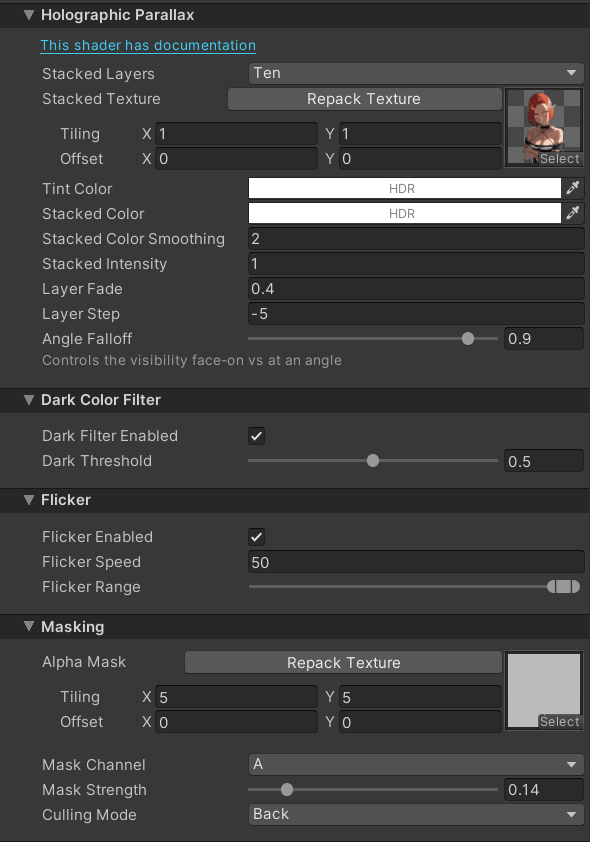

Holographic Parallax Inspector

• Stacked Layers: Controls the number of stacked layers to draw
  • Ten/Six/Four/Two: Sets the number of layers to draw to 10, 6, 4 or 2
• Stacked Texture: The source texture to use
• Tint Color: Controls the tint of the topmost layer
• Stacked Color: Controls the tint of the stacked layers
• Stacked Color Smoothing: Controls the smoothness of the transition from the source texture color to the Stacked Color
  • You can set the Stacked Color to black and crank up the smoothing if you do not want this effect
• Stacked Intensity: Controls the brightness of the stacked layers
• Layer Fade: Controls the amount each layer fades by. Every next layer fades more than the previous one
• Layer Step: Controls the depth offset of each layer
• Angle Falloff: Controls how much the brightness/opacity of the stacked layers drops off when looking straight at the mesh surface vs at a glancing angle. This mimics real-world displays

Dark Color Filter

• Dark Color Filter Enabled: Controls whether the filter is applied. When enabled - any colors below Dark Threshold in brightness will be cut out
• Dark Threshold: Controls the threshold below which the colors will be cut

Flicker

• Flicker Enabled: Controls whether the flicker effect is applied
• Flicker Speed: Sets the speed of the flicker
• Flicker Range: Controls the brightness range of the flicker effect. Setting this to a high range might be unpleasant to look at when up close, so make sure you use it wisely

Masking

• Alpha Mask: The texture to use for masking
• Mask Channel: Controls which channel of the texture is used for masking
  • R/G/B/A: Uses the Red/Green/Blue/Alpha channel of the texture
• Mask Strength: Controls the strength of the masking effect
• Culling Mode: Controls the culling mode of the mesh
  • Off: Disables culling
  • Front: Culls the front faces
  • Back: Culls the back faces
