Masked Tweaks Module

Adjust your material's parameters via a mask texture

When you want to provide an easy way to adjust surface parameters without swapping materials or editing textures - it can be useful to use a mask texture.

Masked Tweaks can be used to adjust Albedo and Smoothness parameters of the surface based on RGBA channels of a mask texture.

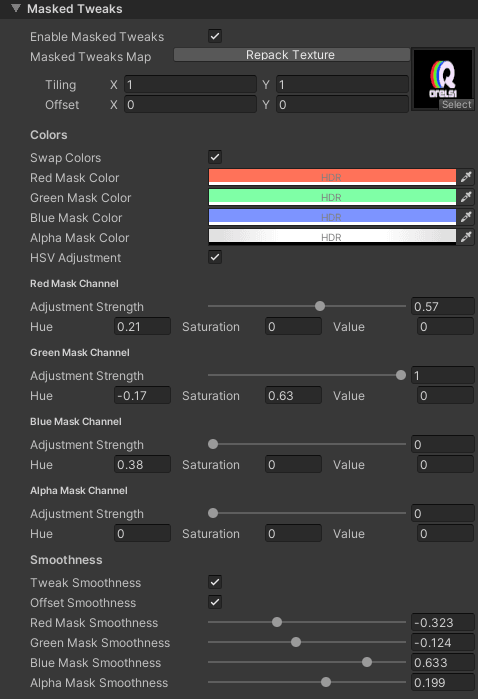

Masked Tweaks Inspector

Compatibility

✨ This module is compatible with all lighting models

Note: Only the PBR lighting model supports the Tweak Smoothness option

Settings

• Enable Masked Tweaks: Enables the effect
• Masked Tweaks Map: The RGBA mask texture to use for tweaking

Colors

• Swap Colors: Enables swapping the colors completely based on the Masked Tweaks Map
  • You can adjust the Alpha value of the colors below to control the strength of the swapping
  • Red Mask Color: Sets the color to use where the mask texture is red
  • Green Mask Color: Sets the color to use where the mask texture is green
  • Blue Mask Color: Sets the color to use where the mask texture is blue
  • Alpha Mask Color: Sets the color to use where the mask texture's alpha is above 0
• HSV Adjustment: Enables adjusting the HSV of the Albedo based on the Masked Tweaks Map
  • Red Mask Channel
    • Adjusment Strength: Controls the strength of the adjustment where the mask texture is red
    • Hue: Shifts the hue
    • Saturation: Adjusts the saturation
    • Value: Adjusts the value
  • Green Mask Channel: Same as above, but for green
  • Blue Mask Channel: Same as above, but for blue
  • Alpha Mask Channel: Same as above, but for alpha above 0

Smoothness

• Tweak Smoothness: Enables tweaking the smoothness based on the Masked Tweaks Map
• Offset Smoothness: Enables adjusting the original smoothness instead of replacing it
• Red Mask Smoothness: Sets the smoothness to use where the mask texture is red
• Green Mask Smoothness: Sets the smoothness to use where the mask texture is green
• Blue Mask Smoothness: Sets the smoothness to use where the mask texture is blue
• Alpha Mask Smoothness: Sets the smoothness to use where the mask texture's alpha is above 0
