Project Settings

There are some cases where you might want to tweak the generator settings in your project: removing built-in modules, changing the default lighting model, or remapping built-in modules to your custom ones. The Project Settings window allows you to do that.

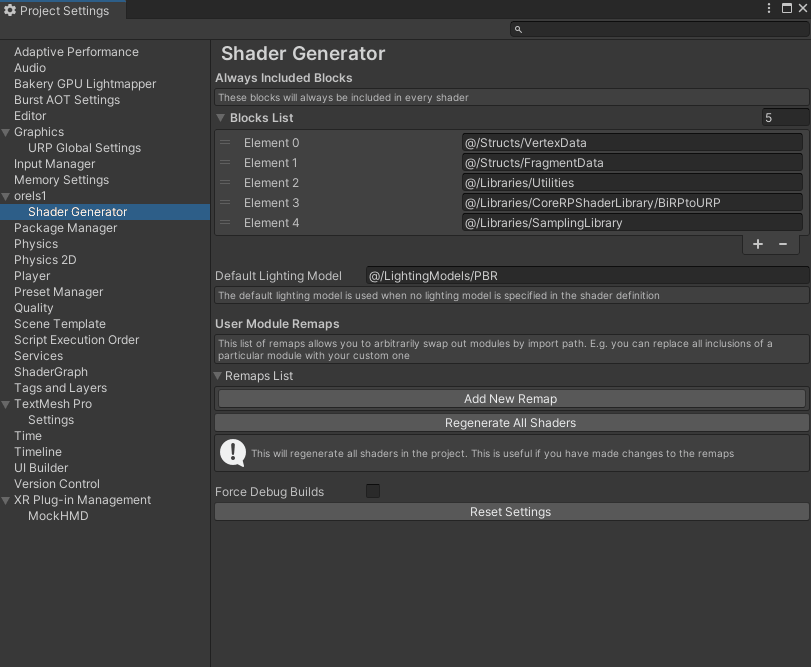

Project Settings Window

Always Included Blocks

This defines a list of all the always included module files (contianing essential blocks like VertexData struct). You can add or remove modules from this list.

Usage Example

In case you'd want to swap out the base VertexData struct with your own - you can do that by remoivng the @/Structs/VertexData module from the list and adding your own. For example, if you want to skip passing around extra UV channels or vertex colors.

Default Lighting Model

Configures which lighting model is used if you do not specify one in your .orlshader file.`

User Module Remaps

Aliases any module to a different file. This is done during the module resolution process and should allow you to change modules in any shader, either built-in or made by you.

Usage Example

Let's say you want to create your own version of the Details module using a custom-packed details texture. Adding a remap for the @/Modules/Details to something like /Assets/Shaders/Modules/CustomDetails will replace every inclusion of @/Modules/Details with your custom module.

This follows the same path resolution rules as any other entry in the %Includes block.
