Ghost Lines Shader

Lines overlay on top of a glowing vertex wobble shader. Inspired by Ghostwire: Tokyo.

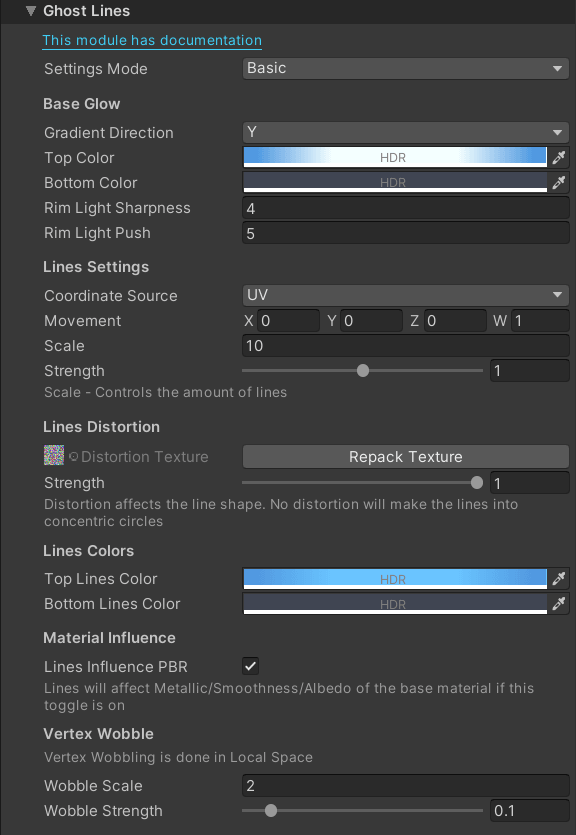

Ghost Lines Inspector

• Settings Mode: Controls the visibility of settings
  • Basic: Limits the settings to the most commonly used ones
  • Full: Shows all the settings

The documentation below describes all the settings, set the Settings Mode to Full to see them all.

While this shader has a lot of settings, the defaults should look good out of the box, so you can just drop it onto the mesh and call it a day.

You can achieve very interesting combinations if you take advantage of the provided settings though, so don't be afraid to experiment!

Base Glow Settings

• Gradient Direction: Controls the direction of the Glow gradient
  • X/Y/Z: Sets the gradient to be aligned with the X/Y/Z axis
• Gradient Sharpness: Adjust the sharpness of the glow gradient. The smaller the value - the more area the gradient will cover
• Gradient Range (Min/Max): Adjust the range of the glow gradient in Local Space. X - gradient start, Y - gradient end
• Top Color: Adjusts the end color of the gradient
• Bottom Color: Adjusts the start color of the gradient
• Rim Light Sharpness: Controls how sharp the rim light falloff will be. Higher values push the rim light toward the edges
• Rim light Push: Pushes the rim light gradient toward the center

Lines Settings

• Coordinate Source: Controls the source of the generation of the lines
  • Local Position: Uses object local position to generate the lines
  • UV: Uses UV coordinates to generate the lines. This is useful for skinned meshes that do not have stable local positions
• Origin: Sets the point from which the lines will originate
• Movement: Controls the movement speed of the lines across the mesh surface
• Scale: Controls the number of lines
• Nudge: Shifts the line gradient across the line width. 0.5 will make the gradient start in the middle of the line. Only visible when Falloff is above 0
• Falloff: Controls the gradient falloff of the lines. The lines become solid at 0
• Strength: Controls the visibility of the lines

Lines Distortion

• Distortion Texture: Sets the texture that will be used for the distortion. Not intended to be modified as it uses a special noise texture
• Scale: Controls the scale of the distortion noise. Higher values generate more complex patterns
• Strength: Controls the strength of the distortion
• Movement: Controls the scrolling of the distortion texture

Lines Colors

• Top Lines Color: Sets the color of the lines at the top of the mesh
• Bottom Lines Color: Sets the color of the lines at the bottom of the mesh

Material Influence

• Lines Influence PBR: Enables Lines influence over the Metallic/Smoothness/Albedo properties of the material
• Metallic Influence: Controls the amount of influence the lines have over the Metallic property of the material
• Smoothness Influence: Controls the amount of influence the lines have over the Smoothness property of the material
• Albedo Influence: Controls the amount of influence the lines have over the Albedo of the material

Vertex Wobble

• Wobble Scale: Controls the frequency of the wobble. High polycount mesh is recommended at higher values
• Wobble Strength: Controls the strength of the wobble
• Wobble Movement: Controls the speed and direction of wobble movement across the mesh surface
• Wobble Y Range (Min/Max): Limits the range of the wobble on the Y axis of the mesh in Local Space. X - wobble start, Y - wobble end

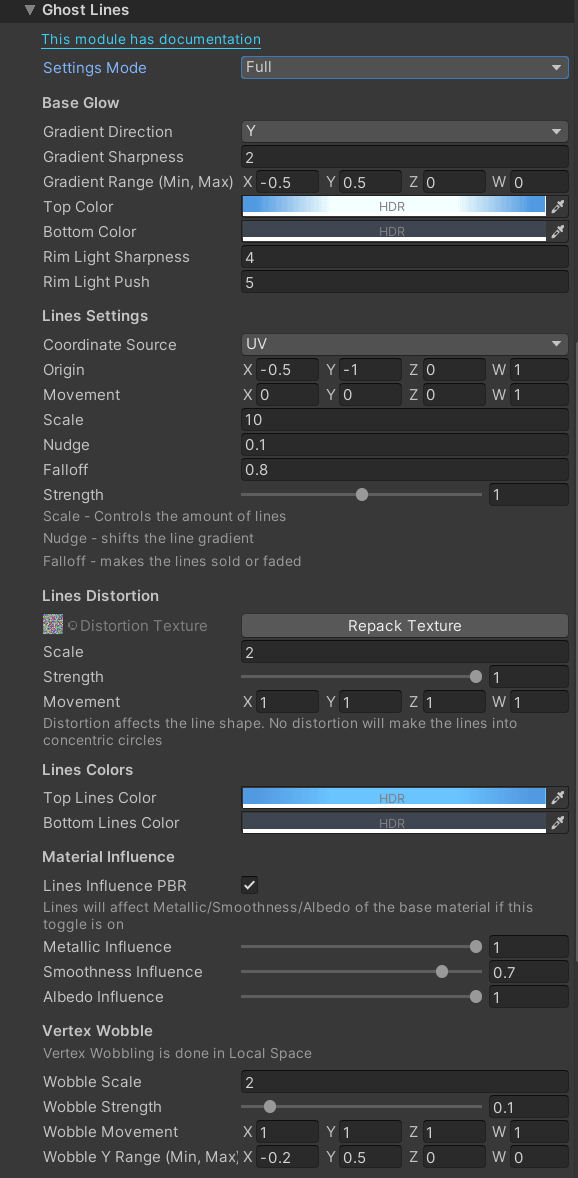

The full inspector looks like this

Ghost Lines Full Inspector
